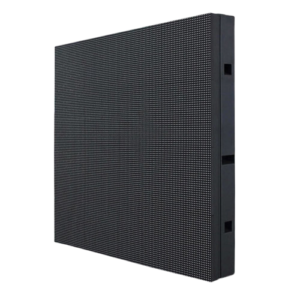

P6 advertising LED Display(768*768mm)

Standardized size and light&thin structure: adopts strenght metal material, with pretty rigidity, light weight and high accuracy.High picture quality, average uniformity 5%, max uniformity 1%; high refresh frequency and gray level. Short lead time.

High load-bearing capability, fast assembly, free shaping, no deformation under high temperature and low temperature working surrounding.
Low heat, low noise, low radiation: through the advanced structure in-conducting designing, keep very silent working status. EMC passed
Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion

Module easy maitenance, no light reflection from mask, anti-UVR and ensure no fading for 5 years. Contrast ratio: 1000:1; Flatness of cabinets: 0.5mm. Power effective ratio more than 88%.
Double backup data can ensures that the screen can work in high efficiency, stability, security situation.

Description

Item P6 advertising LED Display
Pixel Pitch: 6mm

Driving Method :

1/4
LED type : SMD3535
Brightness: ≥5500cd/
Pixel density 27777pix/
Viewing angle: 140°H and 120°v

Module Size(W*H)

192*192mm

Cabinet Size(W*H)

768*768mm
Cabinet weight: 26kg
Cabinet Material: Aluminum
Avarage Power Consumption: 800 W/
Max Consumption : 1700 W/
Refresh rate: ≥1200HZ
Color Depth: 14bit
voltage : 200-240V
IP Rrating (Front/Rear): IP65/IP54
Operating temperature : -20-60 degree
Storage temperature: -40-70 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Life span (hrs) ≥55000
Control system Linsn/Nova
Compliant standard: CE,TUV,RoHS,CCC
